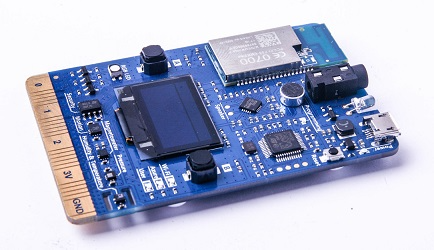

AZ3166

The AZ series development board is a development tool jointly developed by Qingke and Microsoft. It cooperates with Microsoft's series of development tools and Azure cloud services to achieve a perfect IoT development experience.

Portal: Microsoft Developer Website (opens new window)

Moudle	RF	Develop Board	CPU Kernel	Main Frequency	Code	DATA	RAM
EMW3166	Wi-Fi	AZ3166	STM32F412RG	CM4	100M	1M	2M

• 128*64 dot matrix OLED display: VGM128064
• RGB LED lights controlled by P9813:
• Temperature and Humidity Sensor: HTS221
• Atmospheric pressure sensor: LPS22HB
• Bidirectional mono audio ADC/DAC: NAU88C10, microphone and 3.5mm headphone jack
• Six-axis accelerometer: LSM6DSL
• Geomagnetic sensor: LIS2MDL
• DC motor
• Two buttons, three LED indicators
• DAP Link emulation debugger, support serial port debugging input and output, U disk drag and burn

—————————————————————————————————————————————
